20230826 step03 获取当前异常等级 CurrentEL

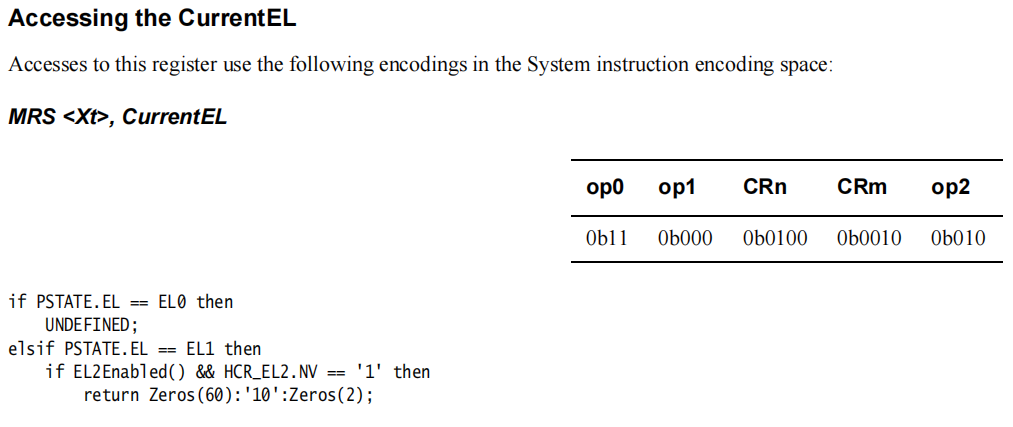

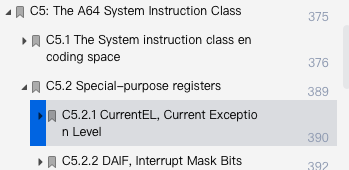

armV8-A 架构文档的 C5.2.1

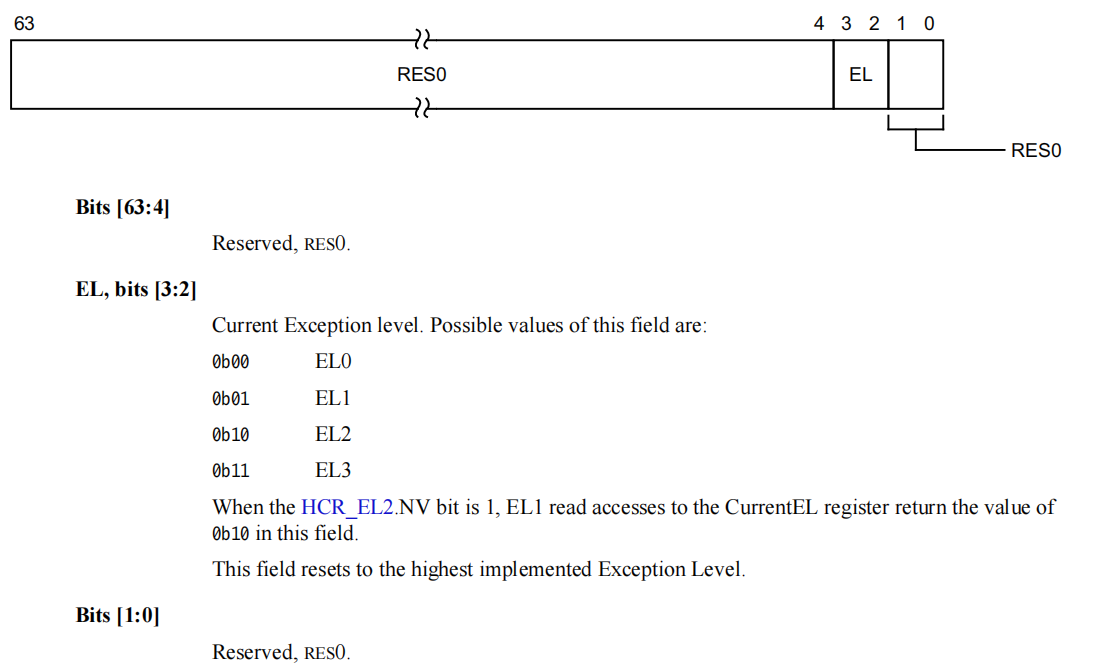

在EL0不可用,EL1时。。。。。,返回值前60bits 和后2bits都为0
修改一下boot.S
// The entry point is in its own section ".text.boot". .section ".text.boot" // The symbol "_start" is the kernel's entry point, make it global. .global _start // Entry point for the main core. _start: MRS X5,CurrentEL //read current Exception level.EL, bits [3:2] LSR X5,X5,2 //Shift out two 0 at the tail // Hang forever in a loop. hang_forever: wfe // Allow the CPU to go to low-power mode. b hang_forever
make
make run-gdb
new teminal: make gdb
读取内存

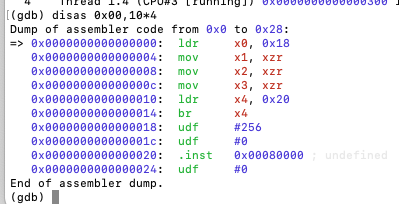

反汇编

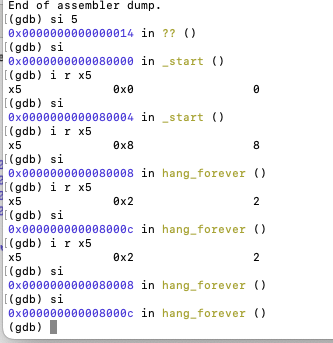

si step instruction, i r 查看寄存器;这里可以看到EL等于2,当前为EL2
