Vue2.0中使用bpmn-js

computerCat / 2023-08-25 / 原文

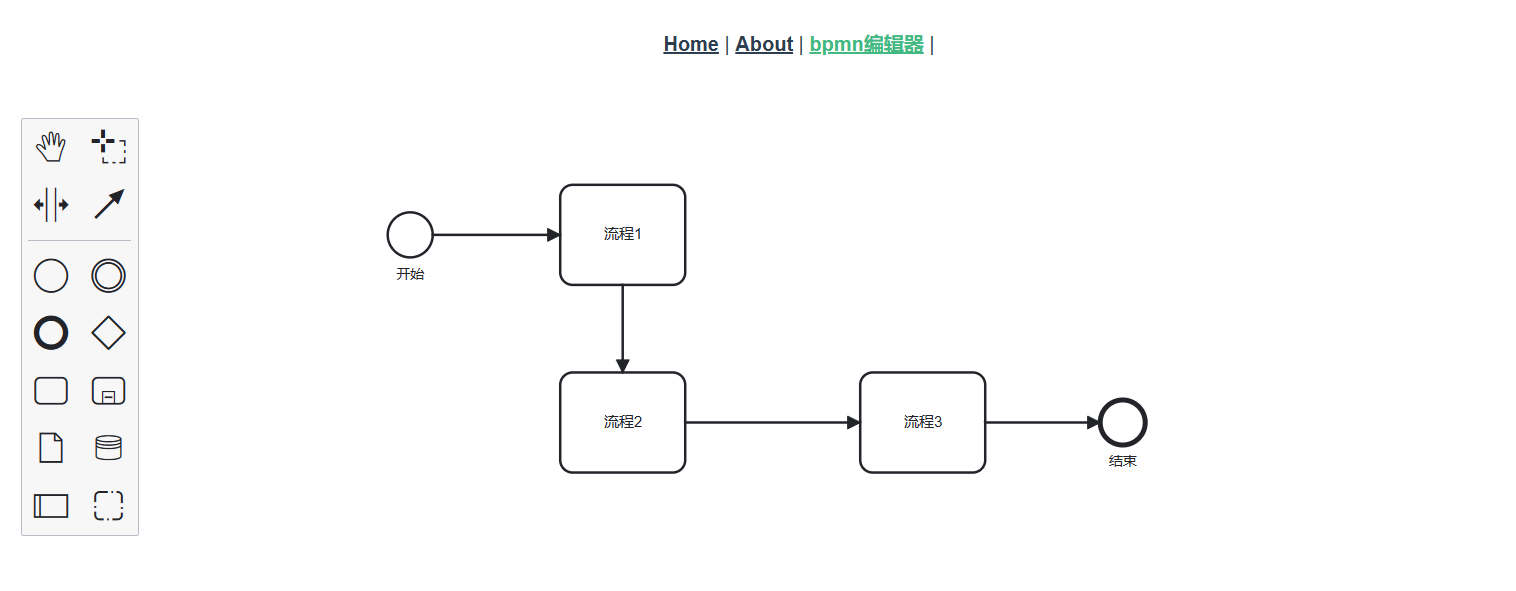

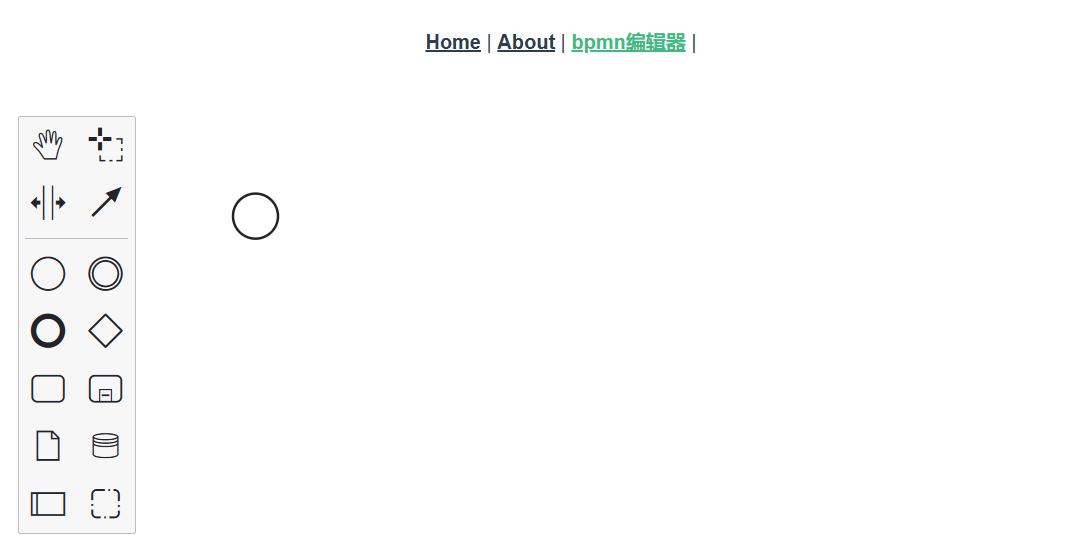

使用bpmn-js在网页中绘制流程图

1. 新建vue项目, 输入命令安装bpmn-js

npm install bpmn-js --save

2. 在src/main.js中引入css样式

//css样式
import 'bpmn-js/dist/assets/diagram-js.css'
import 'bpmn-js/dist/assets/bpmn-font/css/bpmn.css'
import 'bpmn-js/dist/assets/bpmn-font/css/bpmn-codes.css'
import 'bpmn-js/dist/assets/bpmn-font/css/bpmn-embedded.css'

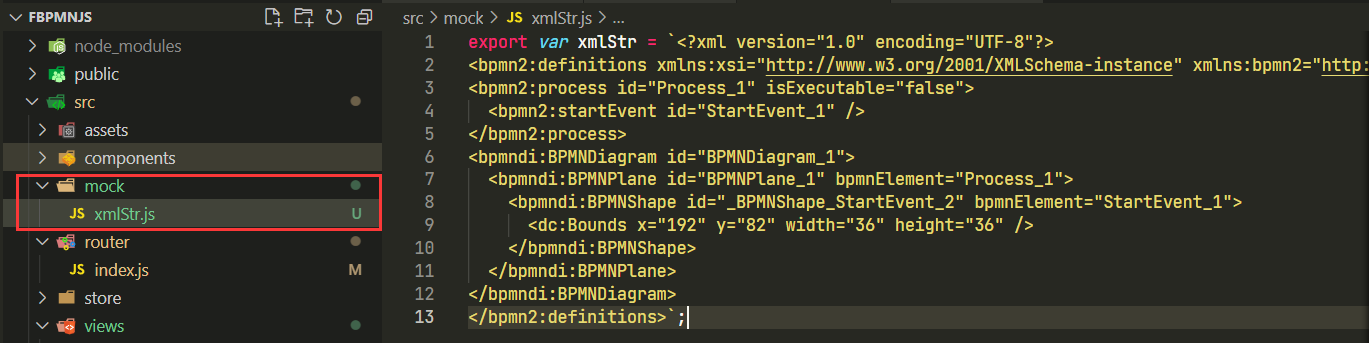

3. 新建src/mock/xmlStr.js文件, 用来存放bpmn的xml数据

export var xmlStr = `<?xml version="1.0" encoding="UTF-8"?>
<bpmn2:definitions xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:bpmn2="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:dc="http://www.omg.org/spec/DD/20100524/DC" id="sample-diagram" targetNamespace="http://bpmn.io/schema/bpmn" xsi:schemaLocation="http://www.omg.org/spec/BPMN/20100524/MODEL BPMN20.xsd">
<bpmn2:process id="Process_1" isExecutable="false">
  <bpmn2:startEvent id="StartEvent_1" />
</bpmn2:process>
<bpmndi:BPMNDiagram id="BPMNDiagram_1">
  <bpmndi:BPMNPlane id="BPMNPlane_1" bpmnElement="Process_1">
    <bpmndi:BPMNShape id="_BPMNShape_StartEvent_2" bpmnElement="StartEvent_1">
      <dc:Bounds x="192" y="82" width="36" height="36" />
    </bpmndi:BPMNShape>
  </bpmndi:BPMNPlane>
</bpmndi:BPMNDiagram>
</bpmn2:definitions>`;

4. 将下面代码粘贴到新建的views/BpmnView.vue视图文件中

<template>
  <div class="containers">
    <div class="canvas" ref="canvas"></div>
  </div>
</template>

<script>
import BpmnModeler from "bpmn-js/lib/Modeler";
import { xmlStr } from "../mock/xmlStr";

export default {
  name: "ops-coffee",
  mounted() {
    this.init();
  },
  data() {
    return {
      bpmnModeler: null,
      container: null,
      canvas: null,
    };
  },
  methods: {
    init() {
      const canvas = this.$refs.canvas;
      this.bpmnModeler = new BpmnModeler({
        container: canvas,
      });

      this.createNewDiagram();
    },
    createNewDiagram() {
      try {
        this.bpmnModeler.importXML(xmlStr);
      } catch (err) {
        console.log(err.message, err.warnings);
      }
    },
  },
};
</script>

<style scoped>
.containers {
  width: 100%;
  height: calc(100vh - 82px);
}
.canvas {
  width: 100%;
  height: 100%;
}
</style>

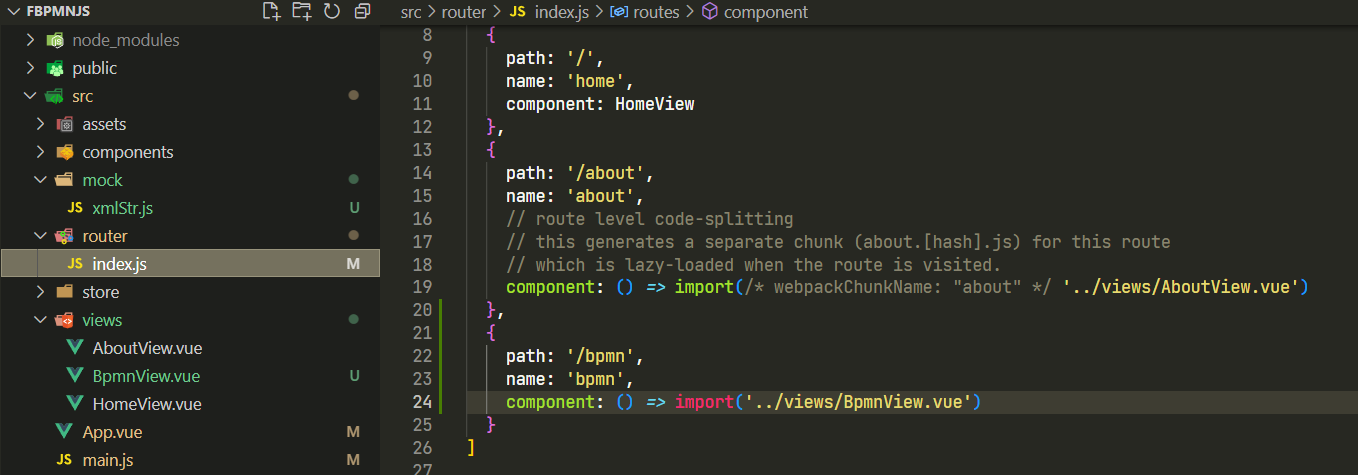

配置路由
