AWS Glue批量同步OpenSearch数据入Redshift

ZacksTang / 2023-08-30 / 原文

1. 目标

使用Glue同步AWS OpenSearch数据到Redshift。

2. 加载测试数据

AOS创建索引并写入：

curl -X POST -u 'xx:xxx' 'https://vpc-knn-4r272pshdggabtlhihabz7clba.ap-northeast-1.es.amazonaws.com/dot_common/_doc' \

 -H 'Content-Type:application/json' \
 -d '{
    "accs_time": "1687883837862",
    "brower": "",
    "brower_version": "",
    "carrier": "TELKOMSEL",
    "city": "",
    "country": "ID",
    "countryCode": "ID",
    "ctime": 1687883840795,
    "event": "google-login",
    "ip": "192.168.1.6",
    "latitude": "",
    "longitude": "",
    "manufacturer": "OPPO",
    "metadata": {
      "action": "login",
      "transactionId":"1234567890"
    },
    "model": "CPH1729",
    "networkType": "NETWORK_WIFI",
    "os": "7.1.1",
    "os_version": "25",
    "source": "Android"
  }'

3. spark代码

查看maven：

https://mvnrepository.com/artifact/org.elasticsearch/elasticsearch-spark-20

es 6.5的 spark connector 对应的版本是spark2。Spark3版本对应的es connector，最低版本为7.12版。

AOS 对应兼容版为7.10.2，所以下面以7.10.2为例

下载依赖：

wget https://repo1.maven.org/maven2/org/elasticsearch/elasticsearch-spark-20_2.11/7.10.2/elasticsearch-spark-20_2.11-7.10.2.jar
wget https://repo1.maven.org/maven2/commons-httpclient/commons-httpclient/3.0.1/commons-httpclient-3.0.1.jar

# redshift 依赖
wget https://repo1.maven.org/maven2/io/github/spark-redshift-community/spark-redshift_2.11/4.1.1/spark-redshift_2.11-4.1.1.jar

# redshift jdbc
wget https://repo1.maven.org/maven2/com/amazon/redshift/redshift-jdbc42/2.1.0.8/redshift-jdbc42-2.1.0.8.jar

pyspark shell测试：

# 启动shell
pyspark --jars ./elasticsearch-spark-20_2.11-7.10.2.jar,commons-httpclient-3.0.1.jar,spark-redshift_2.11-4.1.1.jar \
            --conf "spark.es.nodes=https://vpc-knn-xxxx.ap-northeast-1.es.amazonaws.com" \
            --conf "spark.es.port=443" \
            --conf "spark.es.nodes.wan.only=true" \
            --conf "spark.es.net.ssl=true" \
            --conf "spark.es.net.http.auth.user=xx" \
            --conf "spark.es.net.http.auth.pass=xxx"

# 代码

from pyspark.sql.functions import explode


# 读取ES数据
query = '{ "query": { "match_all": {} }}'
esdata = spark.read.format("org.elasticsearch.spark.sql").option("es.query", query)
df = esdata.load("dot_common")

# metadata字段为struct，展开为列
explodeDF = df.withColumn("action", df.metadata.action).withColumn("transactionId", df.metadata.transactionId).drop(df.metadata)

# 写入Redshift
username = "tang"
password = "xxxx"
url = "jdbc:redshift://demo.xxxx.ap-northeast-1.redshift.amazonaws.com:5439/dev?user=" + username + "&password=" + password

explodeDF.write. \
format("io.github.spark_redshift_community.spark.redshift"). \
option("aws_iam_role", "arn:aws:iam::xxxx:role/redshift-glue-s3-access-role"). \
       option("url", url). \
       option("dbtable", "demo_table"). \
       option("tempformat", "CSV"). \
       option("tempdir", "s3://xxx/tmp"). \
    option("s3_endpoint","s3.ap-northeast-1.amazonaws.com"). \
       mode("overwrite"). \
       save()

Redshift内结果：

4. Glue运行

4.1. 创建到Redshift的Connection

创建此目的是为了让Glue可以在网络层连接到Redshift。

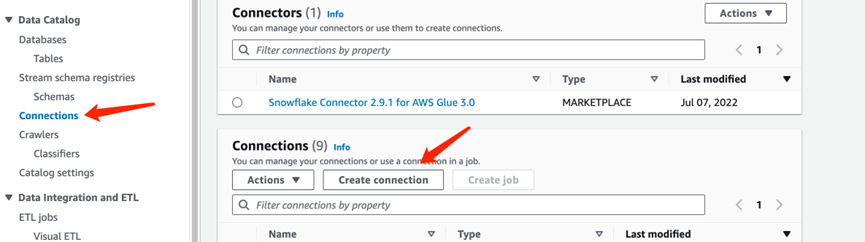

在Glue DataCatalog下的Connections里创建新的连接：

类型选择Network。vpc、子网与redshift属同一子网，同时redshift的安全组允许Glue安全组访问：

4.2. 创建到OpenSearch的连接

与上一步一样：

4.3. Glue 代码

Glue参考代码：

import sys
from awsglue.transforms import *
from awsglue.utils import getResolvedOptions
from pyspark.context import SparkContext
from awsglue.context import GlueContext
from awsglue.job import Job
from pyspark.sql.functions import explode

## @params: [JOB_NAME]
args = getResolvedOptions(sys.argv, ['JOB_NAME'])
sc = SparkContext()
glueContext = GlueContext(sc)
spark = glueContext.spark_session
job = Job(glueContext)
job.init(args['JOB_NAME'], args)


# 读取ES数据
query = '{ "query": { "match_all": {} }}'
esdata = spark.read.format("org.elasticsearch.spark.sql") \
 .option("es.nodes", "https://vpc-knn-xxxx.ap-northeast-1.es.amazonaws.com") \
 .option("es.port","443") \
 .option("es.nodes.wan.only", "true") \
 .option("es.net.ssl", "true") \
 .option("es.net.http.auth.user", "tang") \
 .option("es.net.http.auth.pass", "xxx") \
 .option("es.query", query)

df = esdata.load("dot_common")

# metadata字段为struct，展开为列
explodeDF = df.withColumn("action", df.metadata.action).withColumn("transactionId", df.metadata.transactionId).drop(df.metadata)


# 写入Redshift
username = "tang"
password = "xxx"
url = "jdbc:redshift://demo.xxxx.ap-northeast-1.redshift.amazonaws.com:5439/dev?user=" + username + "&password=" + password

explodeDF.write. \
format("io.github.spark_redshift_community.spark.redshift"). \
option("aws_iam_role", "arn:aws:iam::xxxx:role/redshift-glue-s3-access-role"). \
       option("url", url). \
       option("dbtable", "demo_table"). \
       option("tempformat", "CSV"). \
       option("tempdir", "s3://xxx/tmp"). \
       option("s3_endpoint","s3.ap-northeast-1.amazonaws.com"). \
       mode("overwrite"). \
       save()

job.commit()
